SPECIFICATIONS
High tech display.
Volts:0-18V
Amp:0-2A
Speed:50/60Hz
Duty:depent on volts.
Time:tattoo session timekeeping
Liner/Shader Preset
LINER-C & SHADER-C for momentary mode of foot switch.
VOLTAGE ADJUSTMENT
Press the up and down arrow buttons to adjust voltage.The default adjustment resolution is (1/10) volt,
you can change this value in the config menu when you adjust these values, they are stored in the power
supply memory even in the event of power down.
PRESETS
The power supply is preset in 2 machine modes,in two machine modes there is one voltage preset for
the L button and one for the S button in the config
menu you can change to 4 machine modes in 4 machine modes there are two presets for each of the
L and S buttons pressing the L button will access
and toggle between the two liner presets and pressing S button will access and toggle between the
two shader presets.
FOOT SWITCH MODES

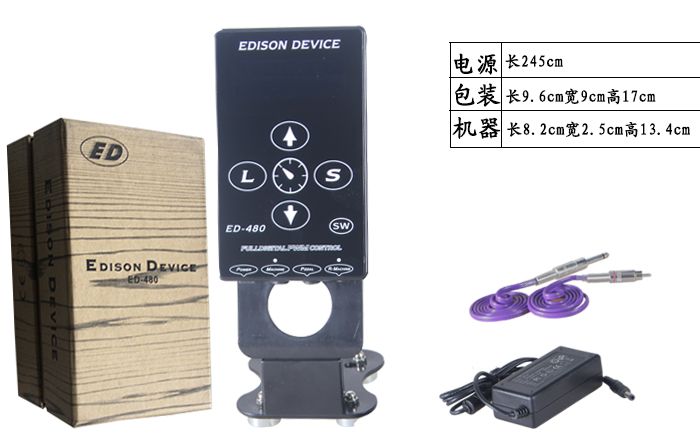

ED-480 has 2 footswitch mode options momentary mode is the conventional operation mode that
most artists are using to where power is supplied to the machine only when the pedal is actuated.
Maintained mode fuctions as a typical maintained switch's on. Push off. Be carefull not to leave
maintained mode activated while machine is unattended or bound up. This situation could damage
the power supply or even your machine. One example of a bound up
machine is when ink dries in your tube and your A-bar cann't break the needles free.
To toggle between maintain mode and momentary mode, press and
hold the L or S button for 5 sec.
